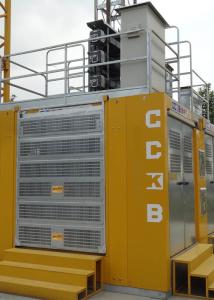

3 Doors Rack And Pinion Hoist SC200/200BG For Man / Material Transportation

Name: 3 Doors Rack And Pinion Hoist SC200200BG For Man Material Transportation
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Rack and pinion hoist man and material lift SC200BG MP-B11 SC200/200BG MP-B12

Certification : TUV, CCC

Place of Origin : CHINA

MOQ : 1 set

Price : In USD

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 25-30 days

Packaging Details : Export package

Description : SC200/200 Rack and pinion hoist

Application : Vertical transportation at building site

Material : Q355B cool roll steel plate

Production : Standardized production, Processed by CNC machines, Laser, Robots in assembly line.

Motor control : VFC (Variable Frequency Control)

Color : Yellow

Contact Now

Rack and pinion hoist man and material lift SC200BG MP-B11 SC200/200BG MP-B12

Design

It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Technical Data

Item & Article No.	SC200BG, MP-B11; SC200/200BZ, MP-B12
Payload Capacity	2,000 KG per Cage
Lifting Speed	0–60 m/min.
Max. Lifting Height	250/400 m*
Cage Width (Internal)	1.5 m
Cage Length (Internal)	3.2 m
Cage Height (Internal)	2.35 m
Cage Doors	3 Doors, Entry Door + Exit Door + Side Door
Drive Unit	VFD (Variable Frequency Drive)
Engine power per cage	3x15 KW
Gearbox	Helical Reducer
Safety Device Type	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Mast Section	Square Column 6506501508 mm with Bolted Rack
Rack module	8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.
